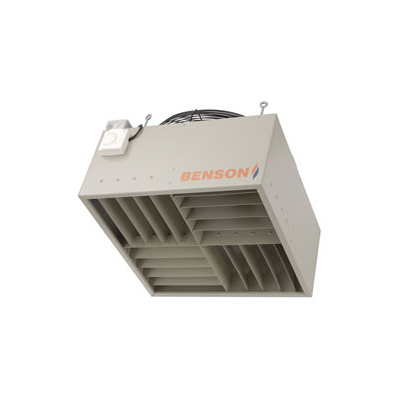

Benson Recoupak cased de-stratification fans are purpose designed to provide a permanent reduction in roof space temperature. The displacement of this pool of warm air from the roof void to working zone level has a positive impact in the reduction of fuel usage which, depending upon building height, can be as much as 15%. Additionally, the air movement recommended has distinctly beneficial effect on operative comfort levels by providing a high level of uniformity of warmth throughout the area where fans are applied.

Specification:

Casing: Manufactured from electro zinc coated steel sheet finished with a durable stove hardened epoxy polyester powder paint. Four eye bolt suspension points are provided. Purpose designed fixing kit available as an option.

Controls: Recoupak fans are supplied ready for automatic operation with installations only requiring mounting and connection of a single phase electrical supply. Each fan is fitted with an integral thermostat which makes on temperature rise.

Air Distribution: The in-built thermostat prevents the premature discharge of cold air, automatically operating the fan on temperature rise gently re-directing the warm air downwards through an adjustable four way louvre.

Testing: Every fan is individually inspected and tested prior to despatch.

Guarantee: Benson Recoupak fans are provided with a twelve-month parts only guarantee.

Design:

Firstly: Select the fan unit to suit the mounting height requirements. Ideally the fan/s should be positioned about one metre under the highest roof point or apex

Secondly: Calculate the building volume in cubic metres, then multiply the volume by two so that the fans displace the building air volume twice each hour.

Thirdly: To determine the number of fans required divide the result of the building volume multiplied by two by the fan displacement (as measured in cubic metres per hour)

Click to download PDF brochure on this product
