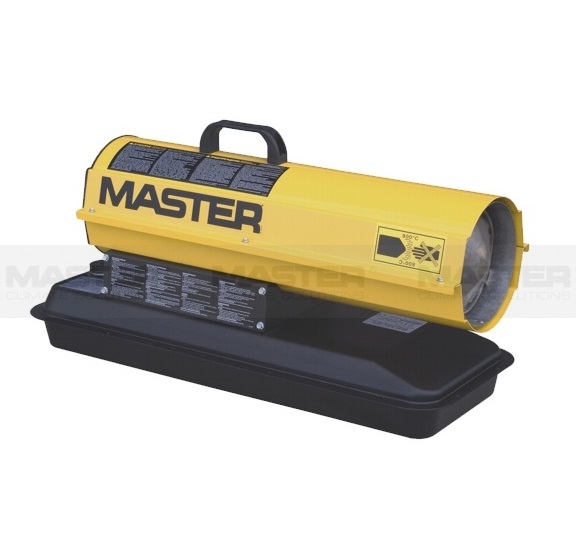

Master B70 CED Direct Oil Fired Portable Heater 20kw

(Inc. VAT)
(Ex. VAT)
Free Shipping


MASTER B 70 CED direct oil heater

20 kW
70.000 Btu/h
17.500 Kcal/h
Air displacement:
Fuel consumption:
Tank capacity:
Dimensions (l x w x ht):
400 m3/h 1,7 kg/h 19 l 810 x 350 x 450 mm
Power supply:
Rated current:
Thermostat control:
Net / gross weight:
220-240/50 V/Hz 1,0 A optional 17 / 19 kg
      15 pcs

Main features

Model description

Thermally protected motor
Electronic flame control with photocell
Possible connection to an optional room thermostat
Stainless steel combustion chamber
Oil tank included
Durable external powder coating
Strong and long lasting construction
Housing remains cool to the touch
Easy to move
High air displacement
Easy maintenance
Two oil filters: oil tank filter and suction filter


How it works

Conbustion system - air flow
